Mystery Motor Revival

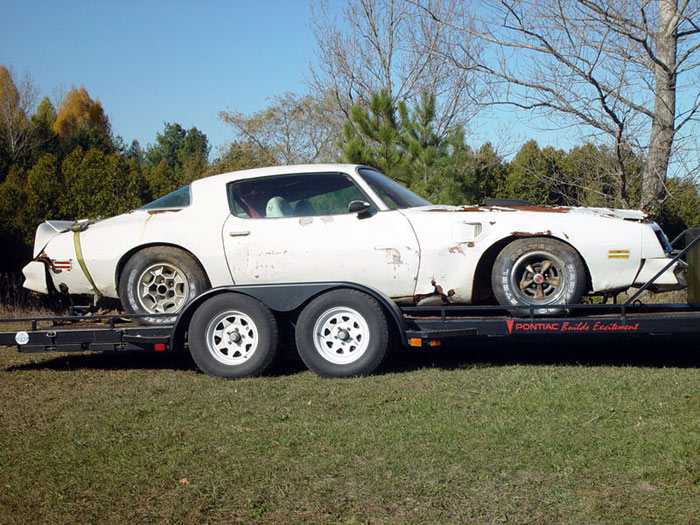

The motor was in this rusted out 76 TA, and was pretty much an unknown when I brought it home. Patrick Page, the previous owner, had parked the Trans Am behind his fathers barn 18 years earlier when family commitments (kids and houses) came first, and it was still there. Unfortunately the car did not survive the down time but Patrick knew the power train was special (he knew the motor had 4 bolt main caps) and he wanted to see it go to a good home. The power train included a recently rebuilt Borg Warner Super T10 4 speed transmission and 10 bolt 3.23 Sure Grip rear end. The bonus was, he also sold me another  455/TH400 combination that came from a 1971 Grand Prix SJ

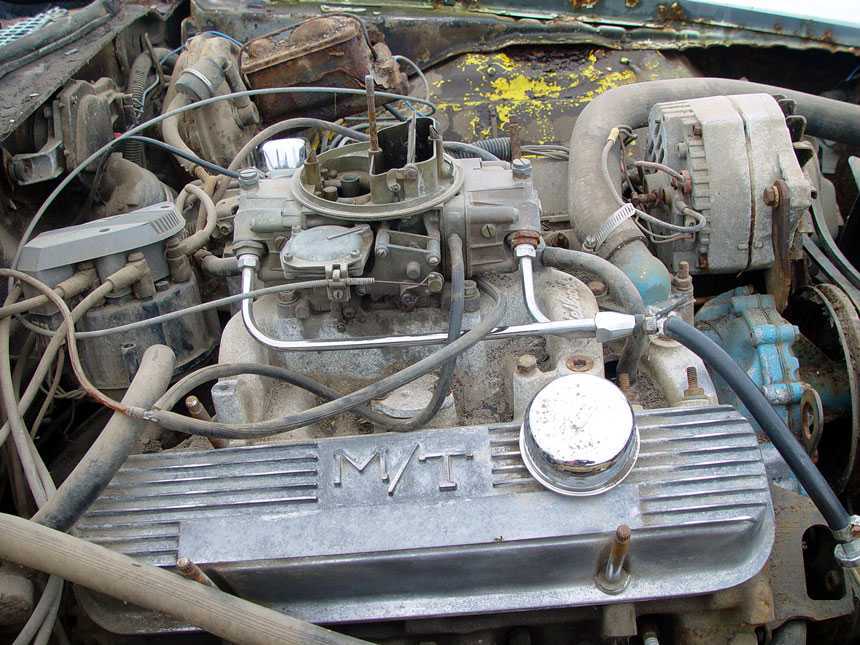

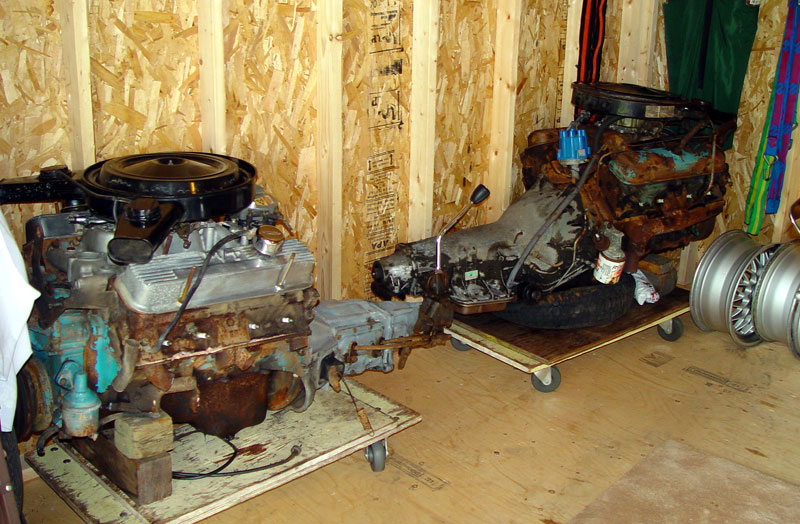

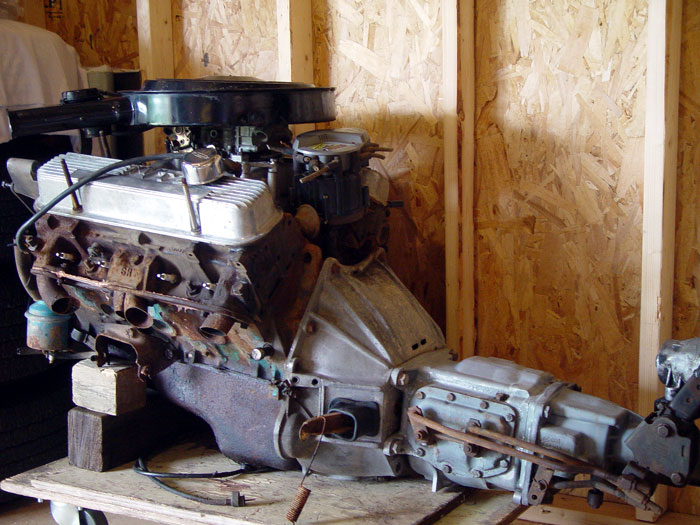

Motor-6.jpg (83736 bytes) Motor-Out-2.jpg (106991 bytes) and the extra motor 2x455.jpg (137593 bytes)

On removal the motor in the car was found to be a 1971 455HO Service Replacement long block, missing only the HO heads and intake - certainly something worth saving!

Spring 2006 Update

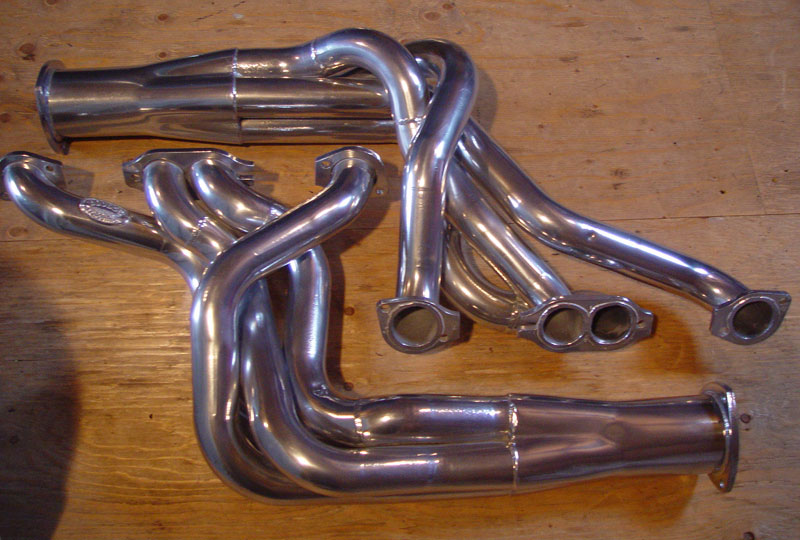

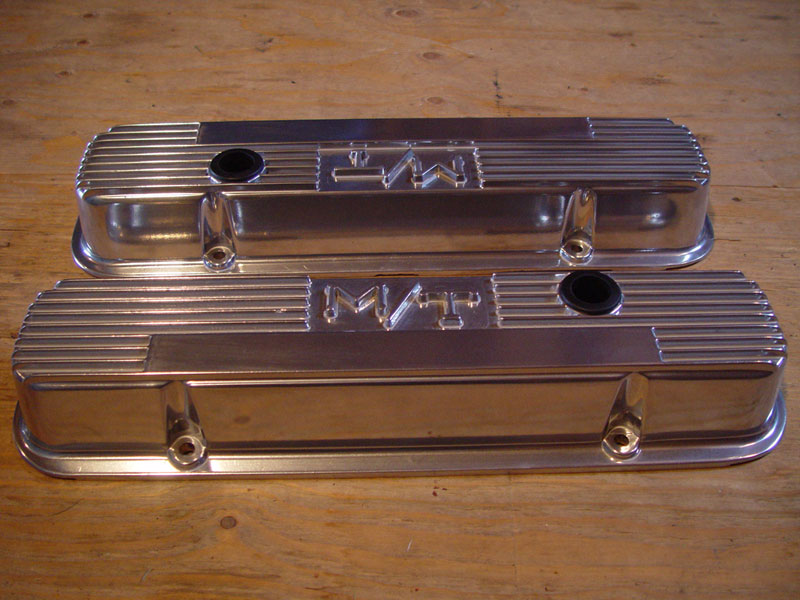

The old M/T valve covers were refinished along with some Hooker Super Comps


The motor was delivered to Killer Racing in London Ontario where Larry Kilpatrick will revive it to better than new. The block was cleaned by shot blasting it inside and out

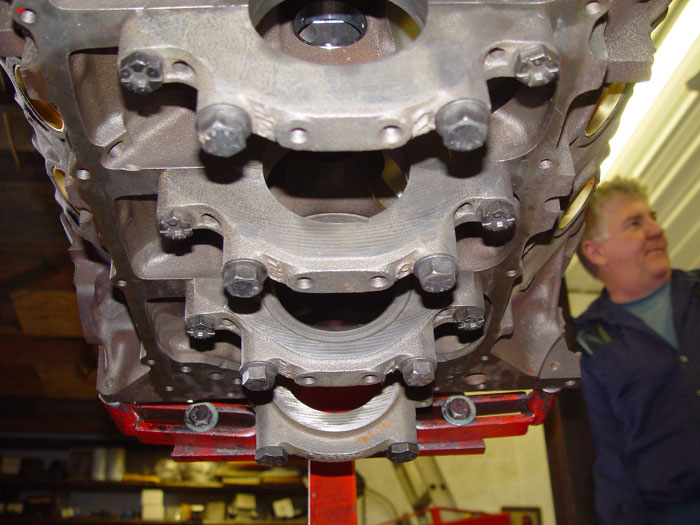

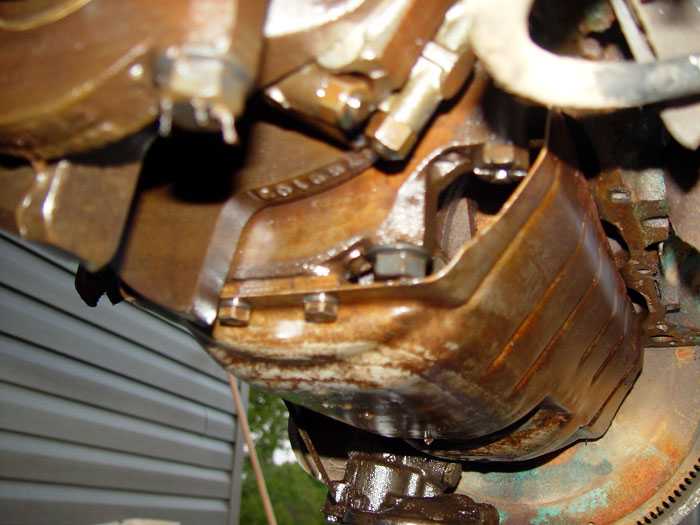

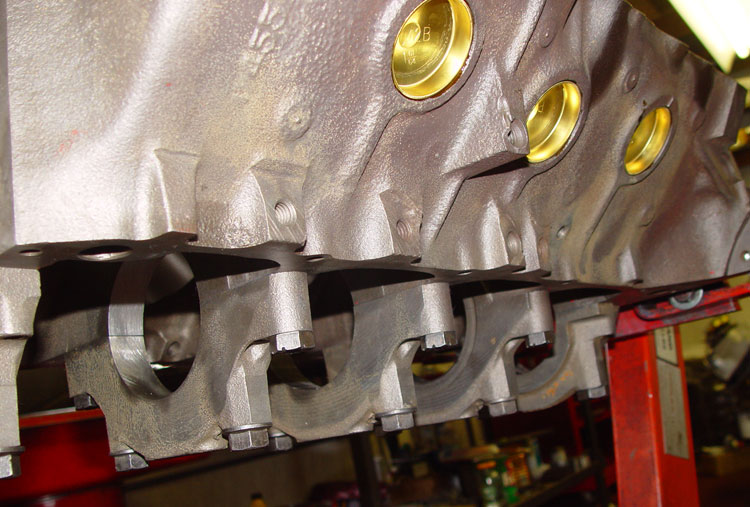

(before)  Windage-Tray-2.jpg (83442 bytes) (after) Four-bolts.jpg (85901 bytes) Four-bolts-2.jpg (96629 bytes)

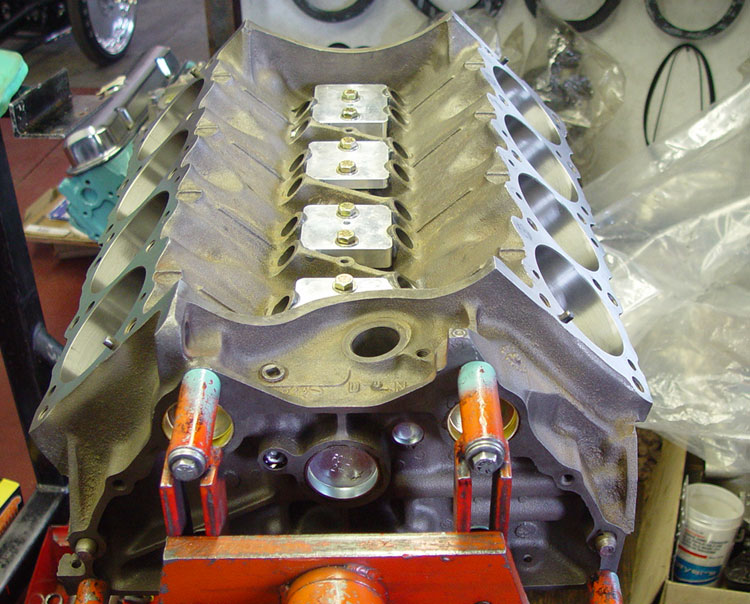

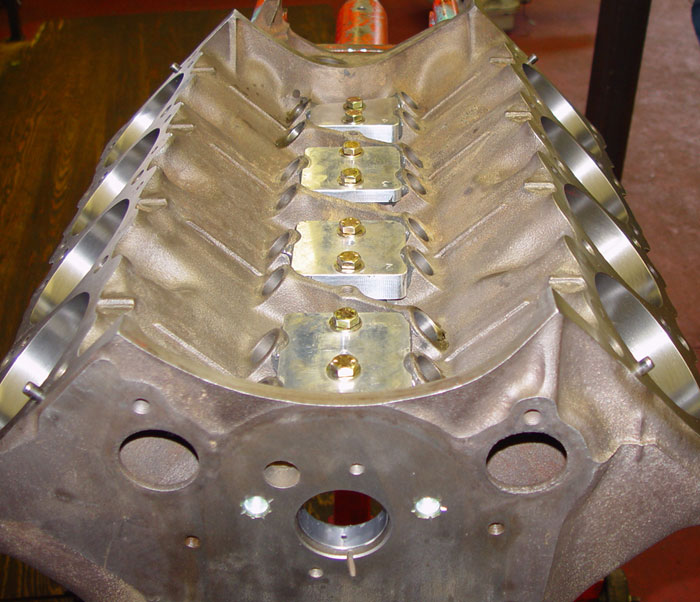

The lifter valley is reinforced with the SD Performance Mega-Brace kit

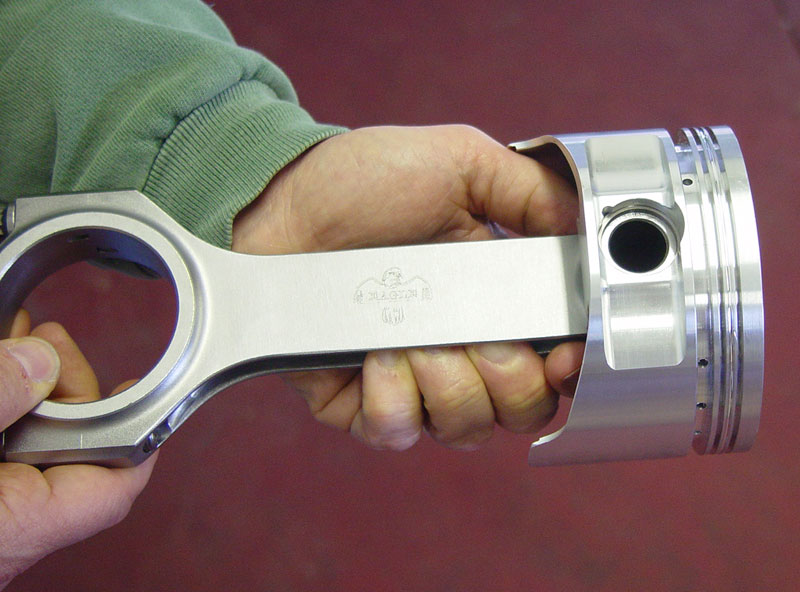

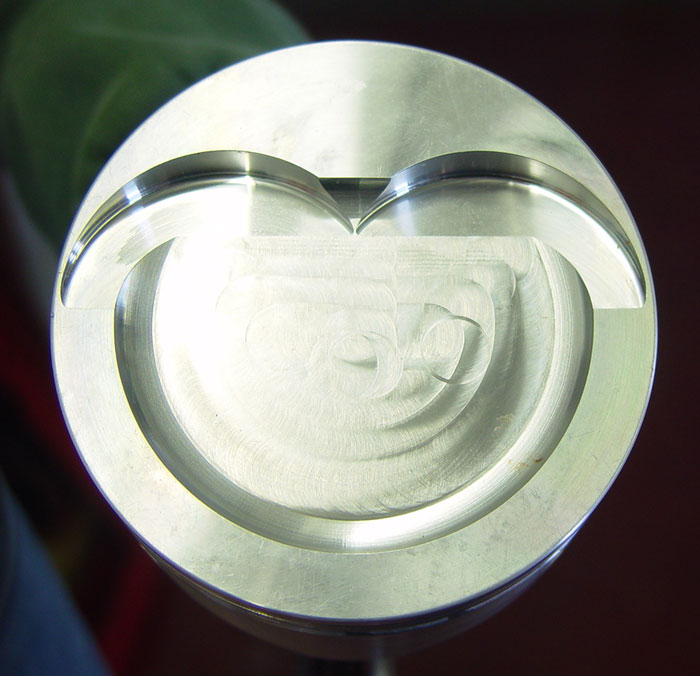

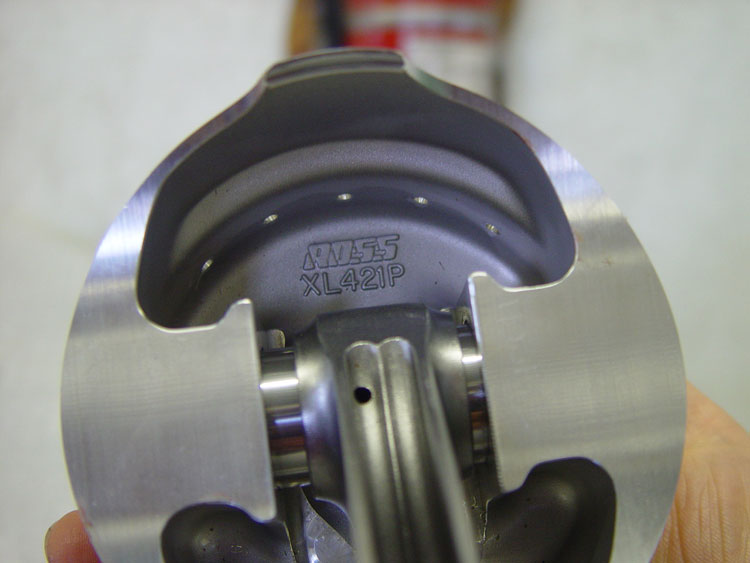

New Eagle 6.80" H-Beam rods (Big Block Chevy) and Ross pistons

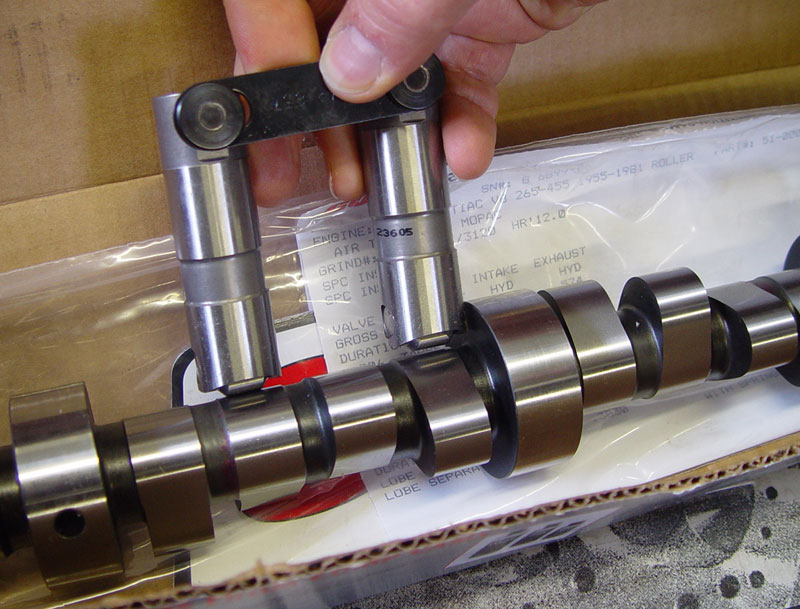

Comp Cams Roller Cam & Lifters

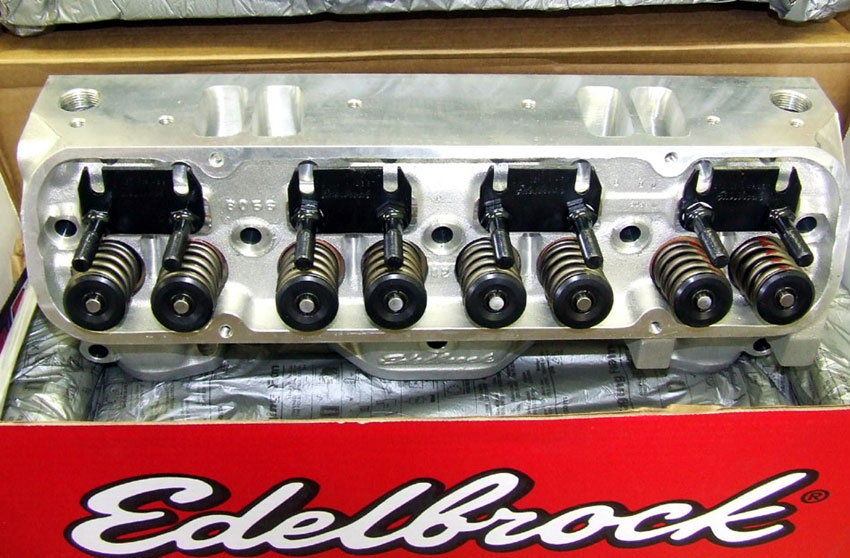

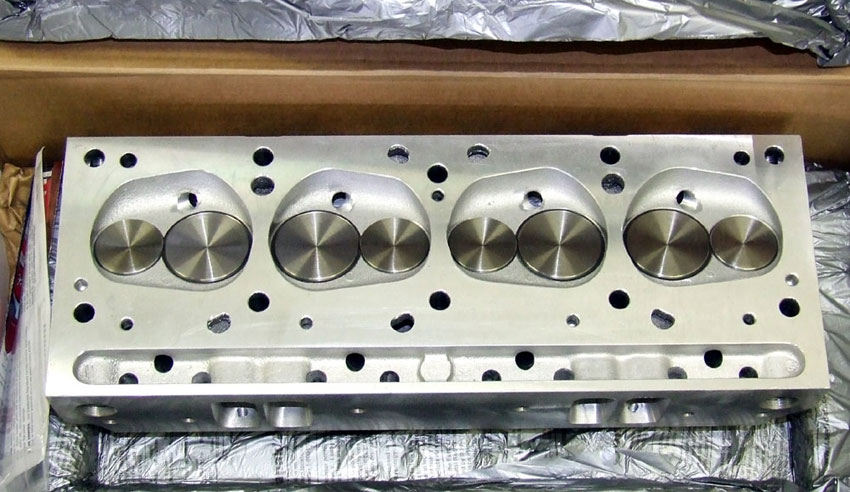

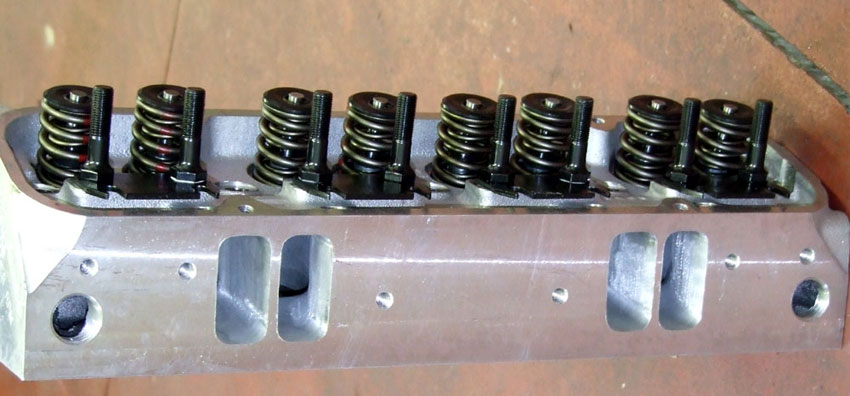

Dave Bisschop modified 72cc E-heads that flow 300+ cfm

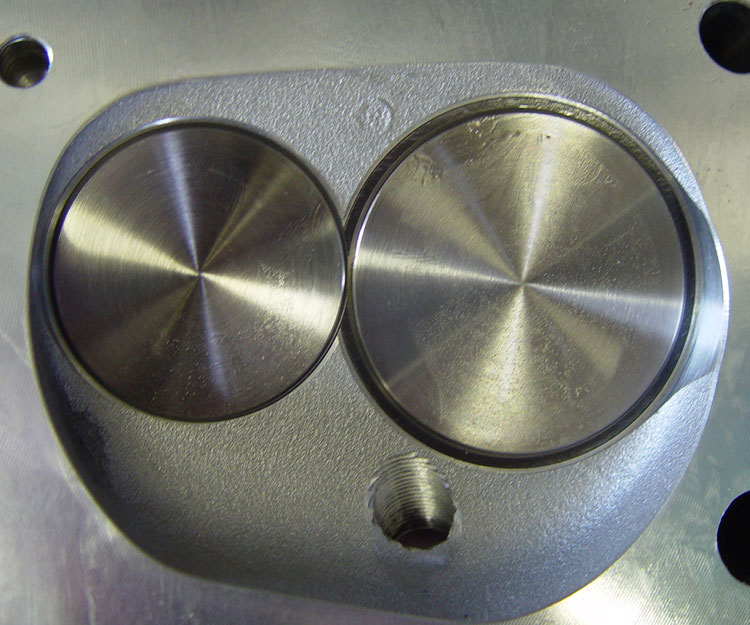

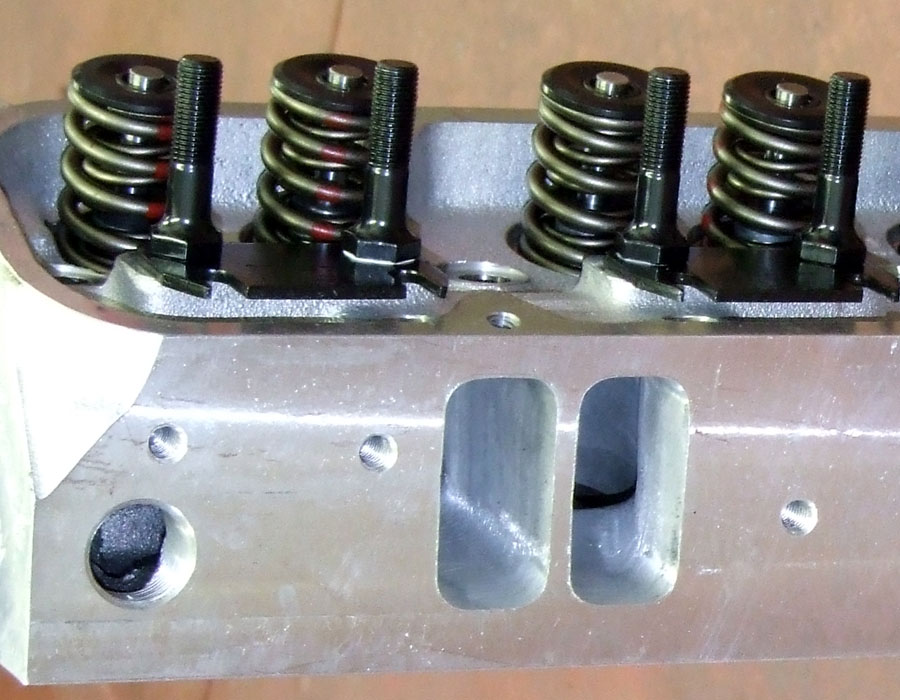

Big Valves -  2.19" intake (BBC valves), 1.77" exhaust.

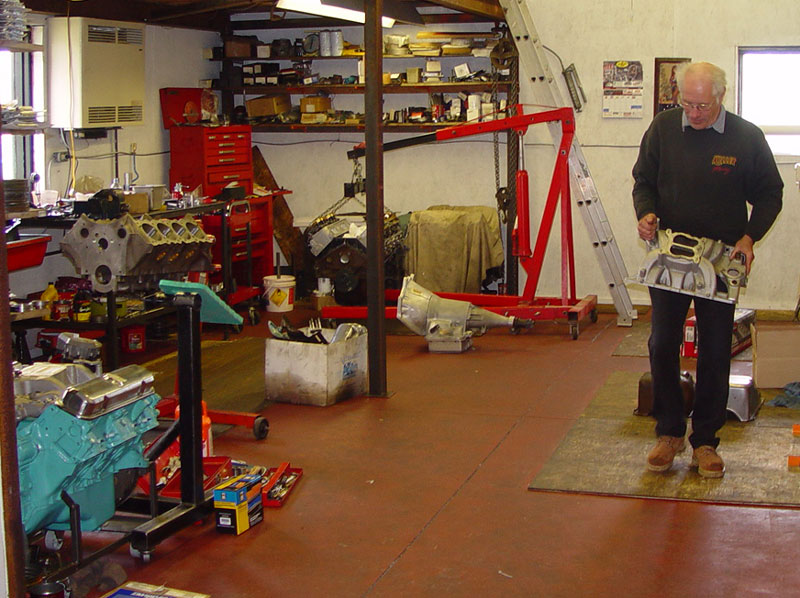

Larry Kilpatrick,  drag racer and engine builder

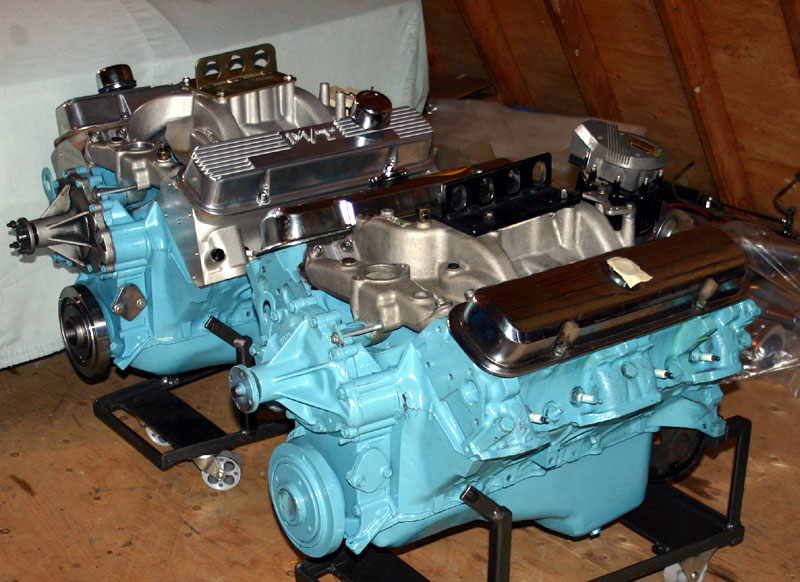

My other 455HO motor is in the foreground, he also rebuilt it with new pistons, bearings, timing chain and return to "041" cam and 1.6 roller rockers. The previous valve springs had only lost 10 lbs of pressure in 3 years of use with the solid lifter cam - guess I wasn't reving it high enough :)

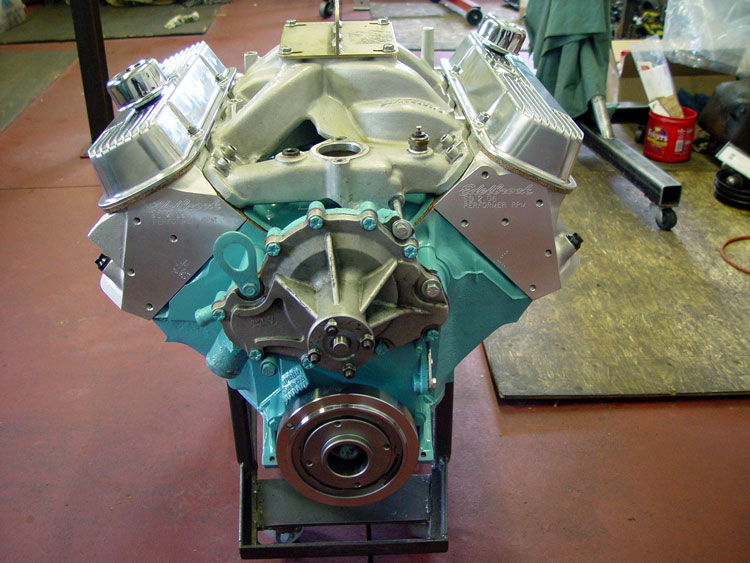

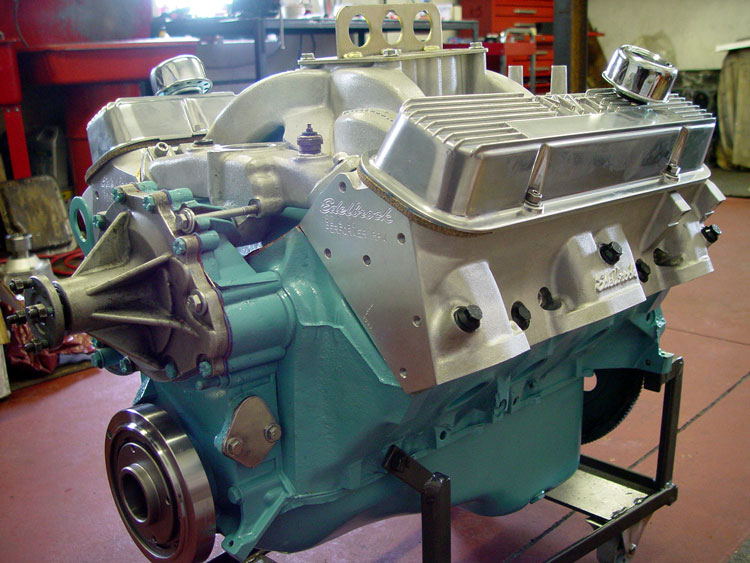

The Revival is complete!

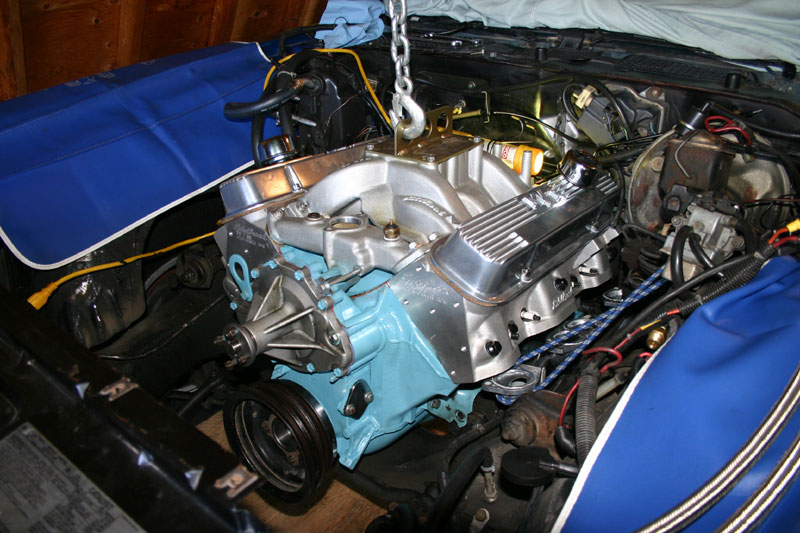

The "Revived" Motor is going in the TA this year.


 Time Slip from St. Thomas Dragway Oct 18/08
