Intake Manifold Modification

In the quest for good air flow on the intake, but still have the stock height to enable the factory air cleaner to be used, I had to sacrifice an original 1971 455 HO aluminum intake manifold to achieve my goal.

The surgery was performed by   and here's what was involved.

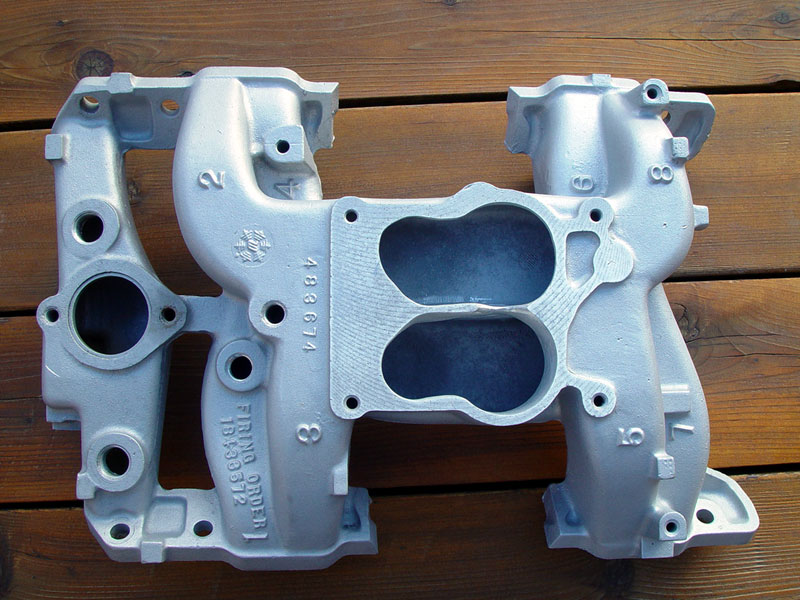

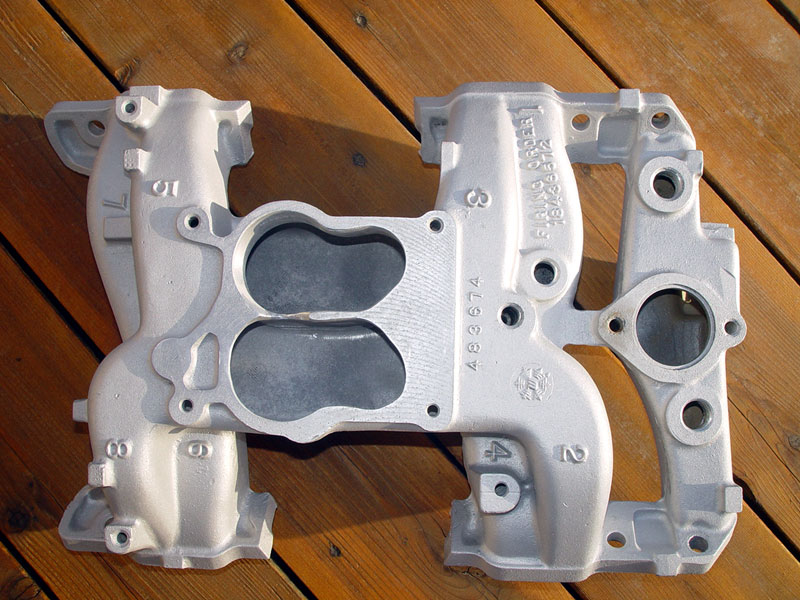

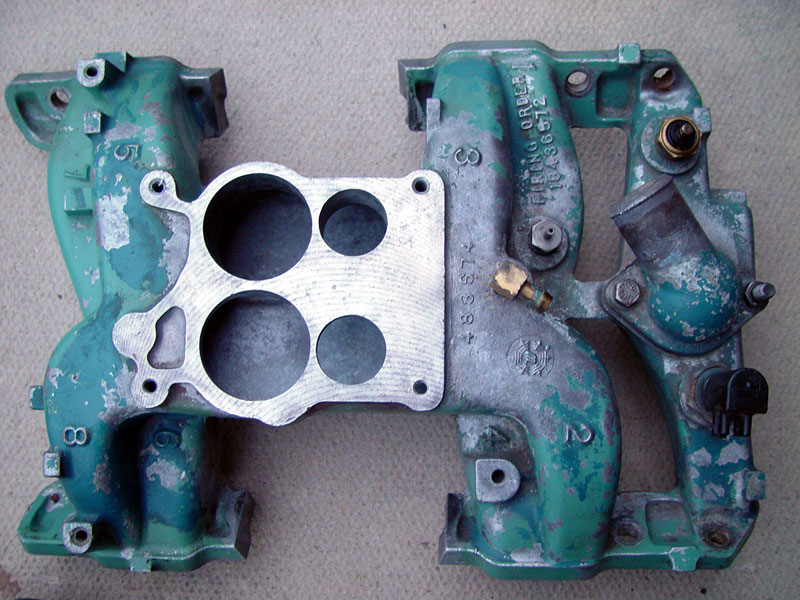

Top before and after

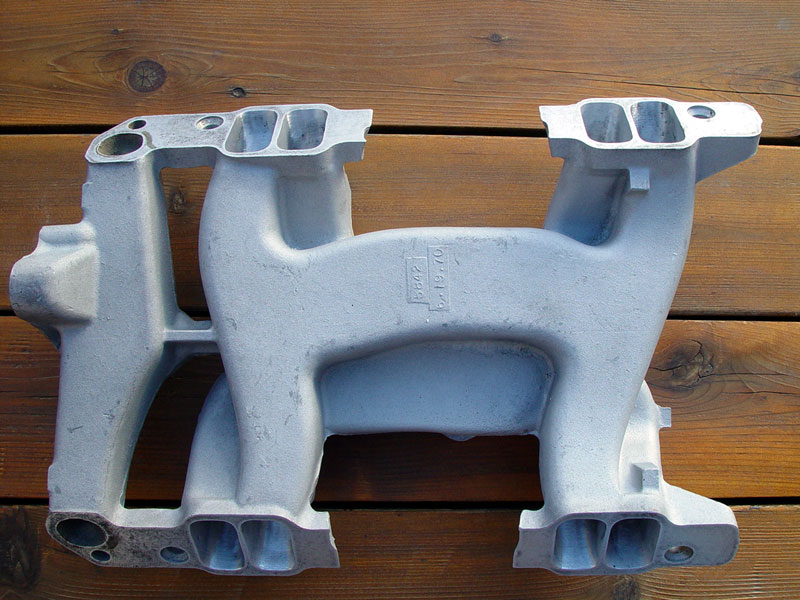

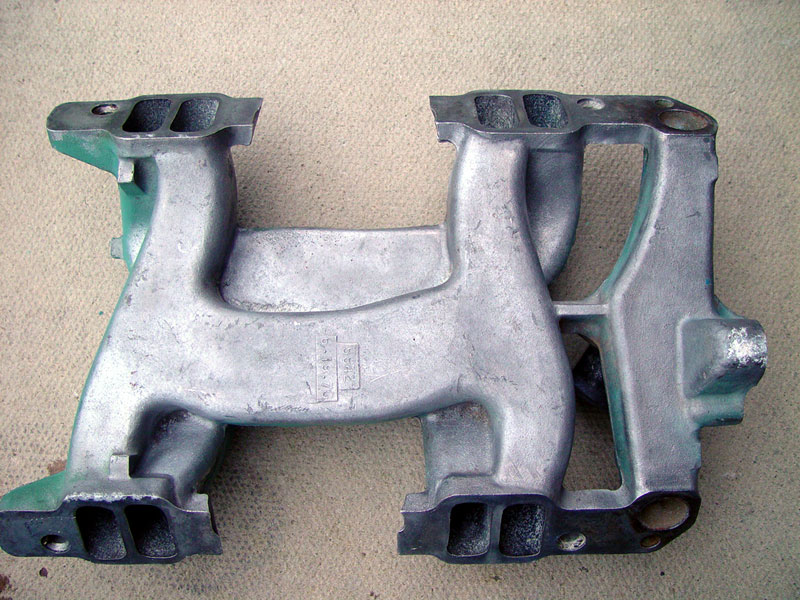

Bottom before and after

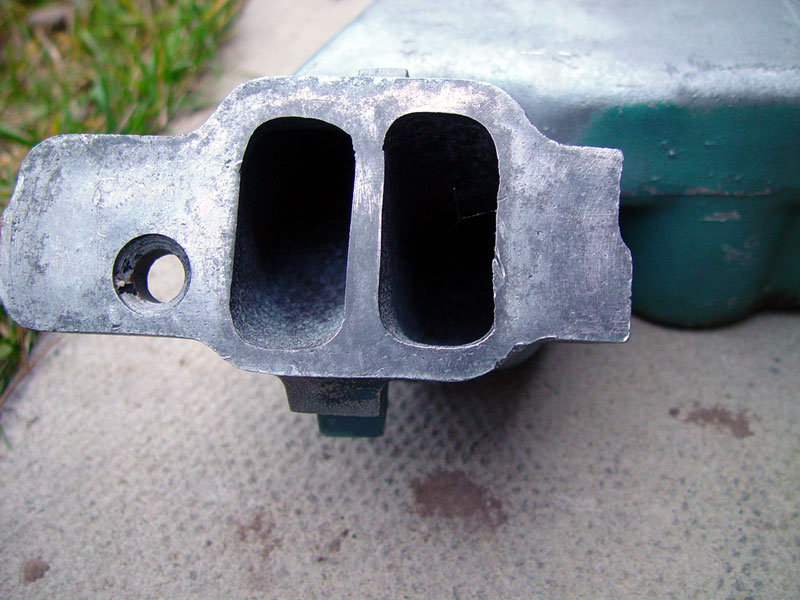

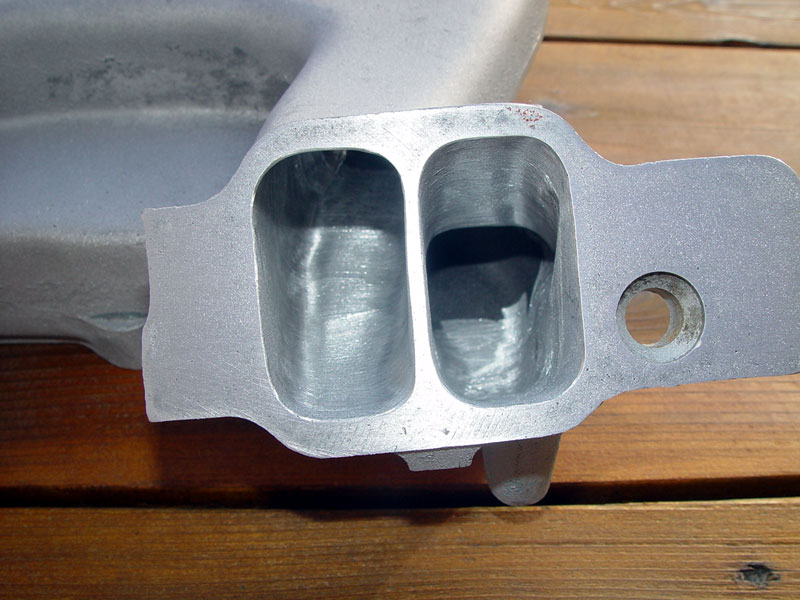

 Intake ports before and after

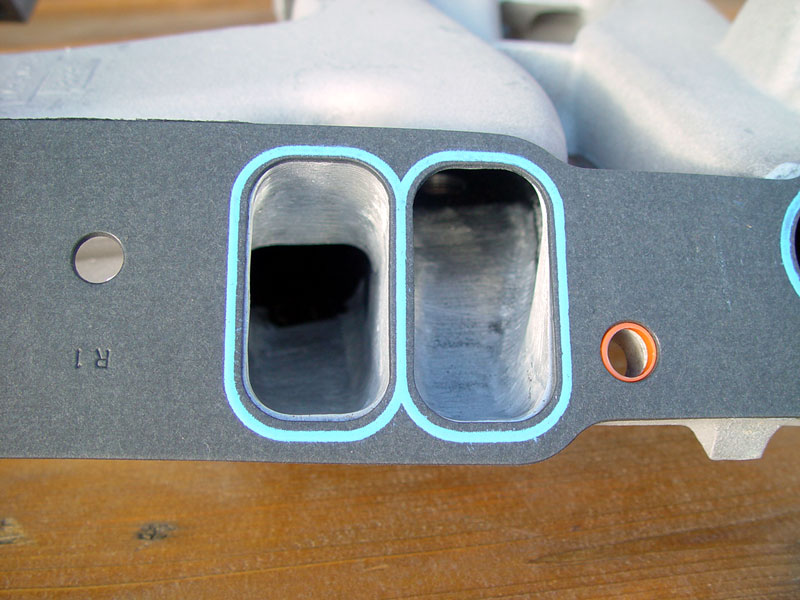

Port match to the SD modified Edelbrock 72cc heads with high ports

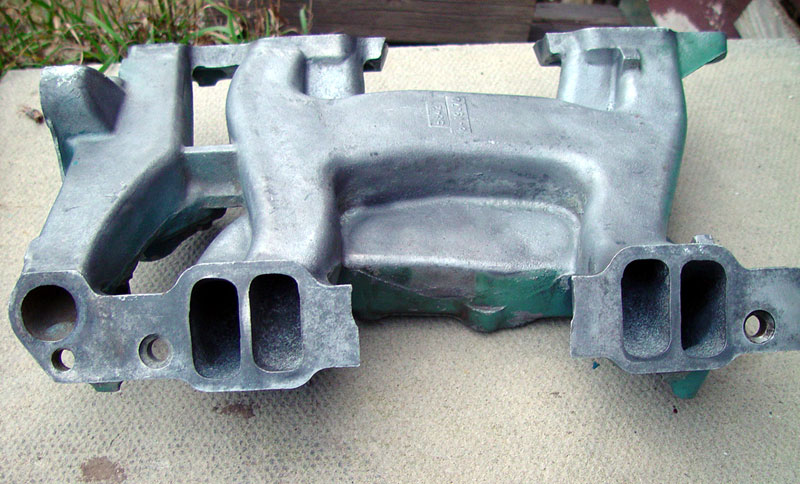

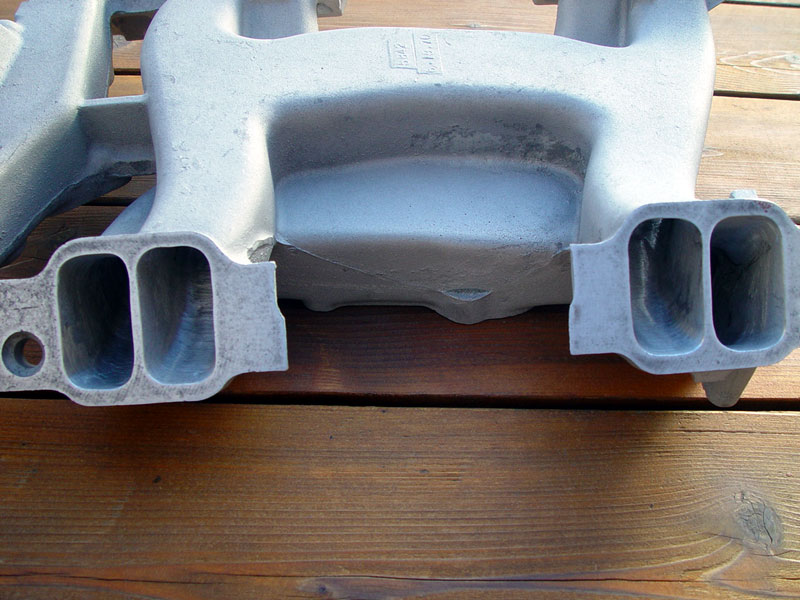

Intake runners before and after - the CNC work goes right to the plenum

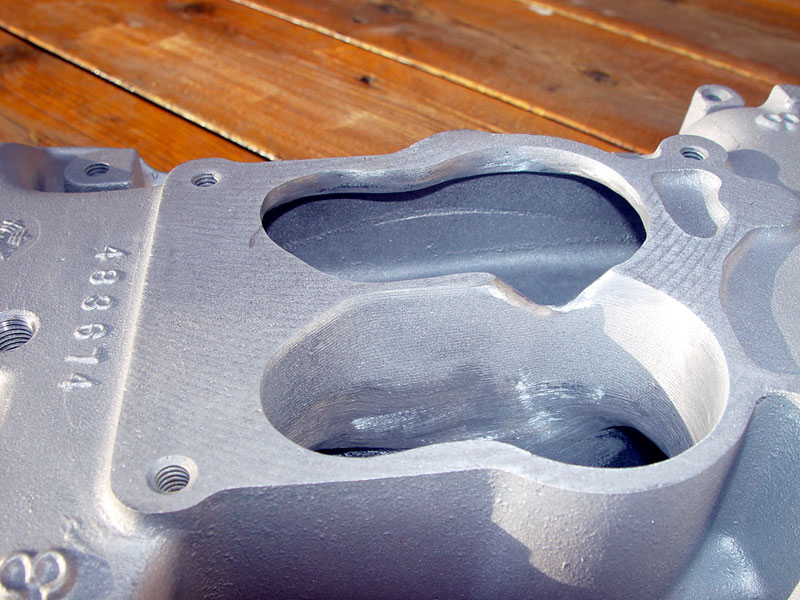

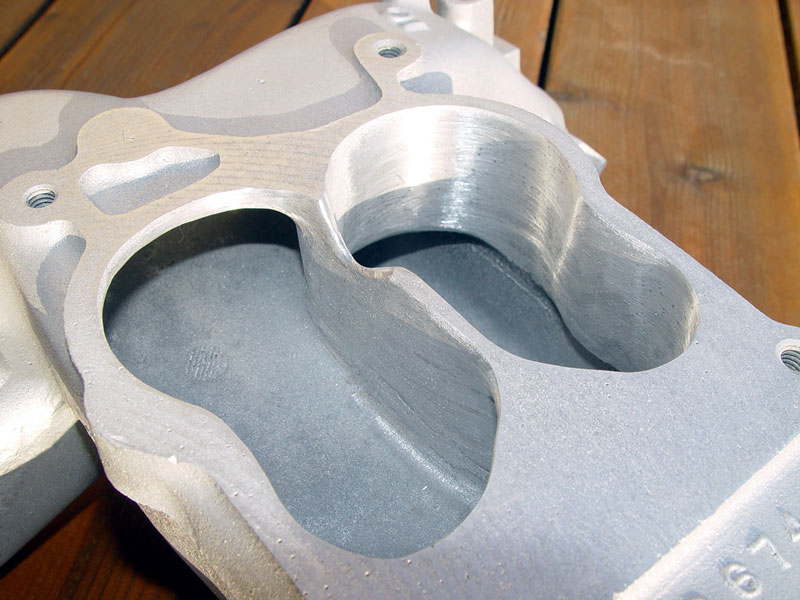

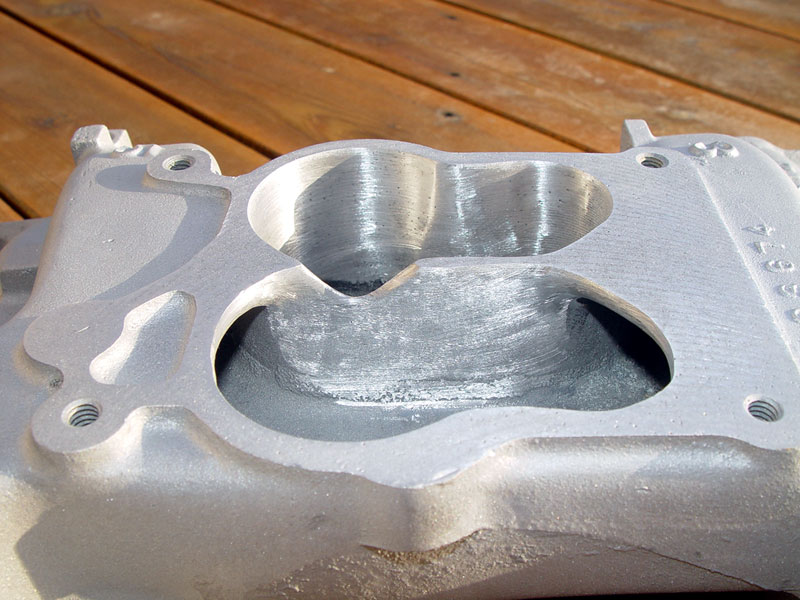

 Intake flange & plenum modifications
